Creating Rules

Step-by-step guide to creating a business rule, configuring fields, conditions, and actions.

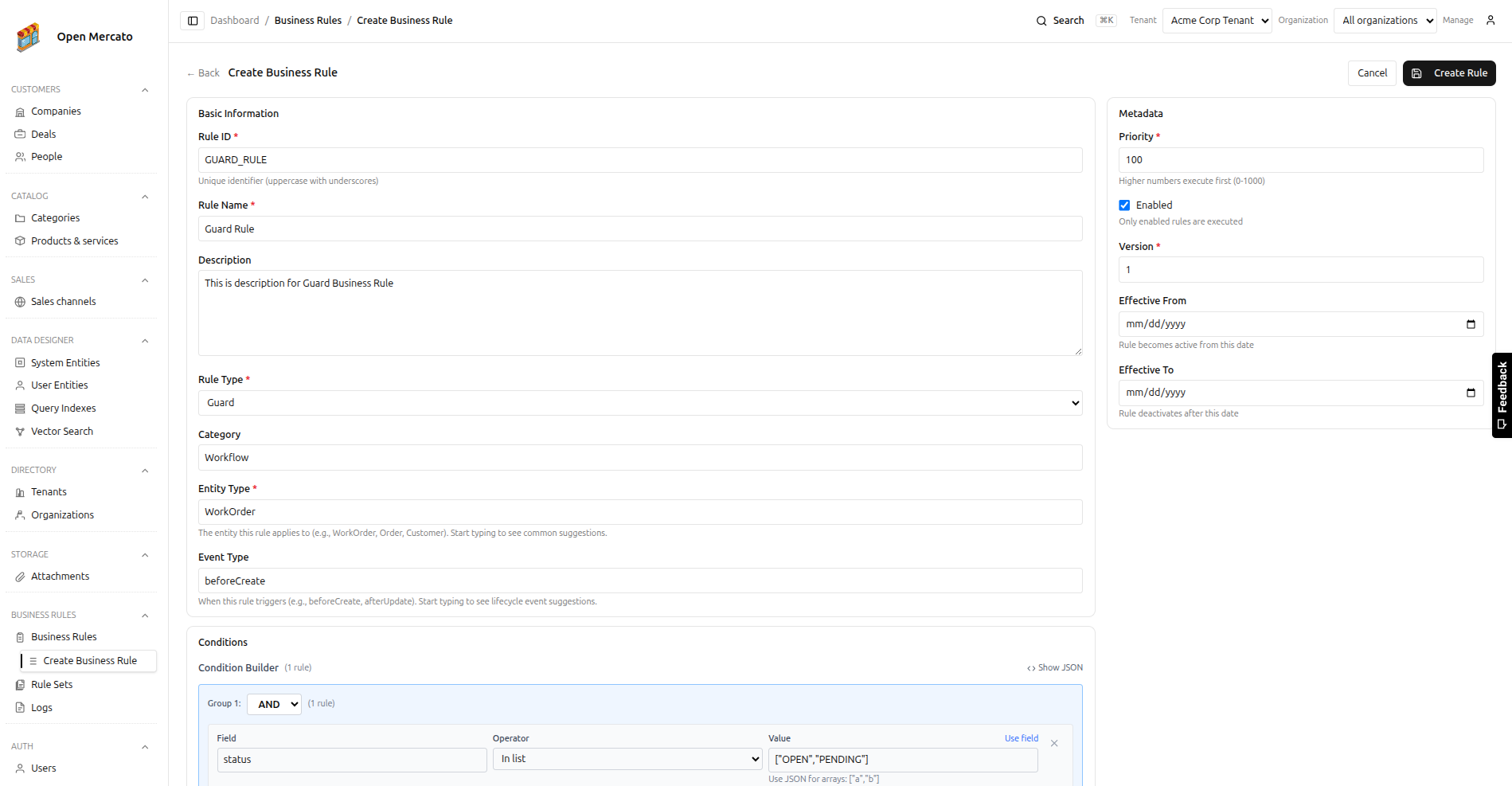

Accessing the Rules Page

1. Navigate to Business Rules > Rules
2. Click Create Rule
3. Fill out the form sections

ℹ️ Requires business_rules.rules.create feature permission.

Form Fields

Field	Required	Format	Description
Rule ID	✅	Uppercase, _, max 50 chars	Unique identifier, auto-generated from name. Cannot change after creation.
Rule Name	✅	Text, max 200 chars	Human-readable name. Use clear, descriptive names (e.g., "Block Work Order Release Without Materials").
Description		Text, max 5000 chars	Business rationale, special cases, policy references, dependencies.
Rule Type	✅	Select	GUARD (block/allow), VALIDATION (validate data), CALCULATION (compute values), ACTION (side effects), ASSIGNMENT (auto-populate). See Rule Types.
Rule Category		Text, max 50 chars	Logical grouping (e.g., "Material Planning", "Quality Control", "Approval Workflow").
Entity Type	✅	Combobox, max 50 chars	Entity to apply rule to (WorkOrder, Order, Invoice, Customer, Product, User, Task, Ticket, Deal, Contact). Case-sensitive.
Event Type		Combobox, max 50 chars	Lifecycle event trigger (beforeCreate/Update/Delete/Save, afterCreate/Update/Delete/Save, onStatusChange, onAssign). Leave empty for any event.

Metadata

Field	Default	Range	Description
Priority	100	0-9999	Execution order (higher first). GUARD: 500-1000, VALIDATION: 300-500, CALCULATION: 200-300, ACTION: 50-200, ASSIGNMENT: 0-100.
Enabled	✅	Boolean	Active/inactive. Only enabled rules execute.
Version	1	Integer ≥1	Audit trail. Increment for significant changes.
Effective From		Date	Rule becomes active. Leave empty for immediate activation.
Effective To		Date	Rule becomes inactive. Leave empty for indefinite.

Effective Date Use Cases:

• Schedule future activation (new policy)
• Temporary promotions/pilots
• Coordinate with system updates

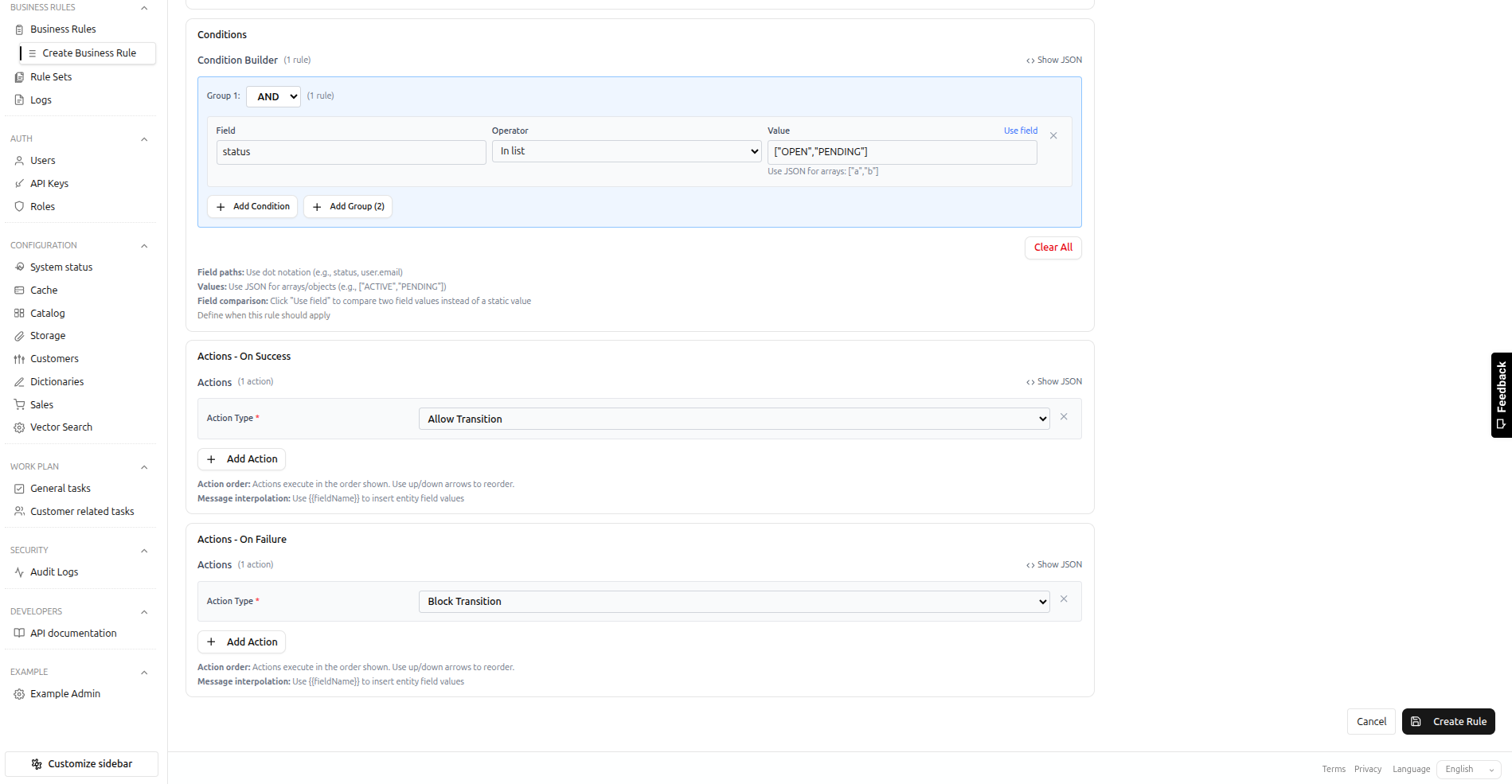

Conditions

Define when the rule applies. See Conditions Guide for details.

Key Points:

• No conditions = always execute (match all)
• Dot notation for fields (user.email, address.city)
• 15 operators (=, !=, >, <, IN, CONTAINS, STARTS_WITH, MATCHES, IS_EMPTY, etc.)
• AND/OR groups, nest up to 10 levels

Actions

Configure success (conditions true) and failure (conditions false) actions. See Actions Guide for details.

Key Points:

• Success: conditions true → execute
• Failure: conditions false → execute (GUARD uses failure to block)
• Sequential execution, message interpolation ({{field}})
• 10 action types (ALLOW/BLOCK_TRANSITION, LOG, SHOW_ERROR/WARNING/INFO, NOTIFY, SET_FIELD, CALL_WEBHOOK, EMIT_EVENT)

Saving & Validation

Save:

1. Click Create Rule
2. Rule immediately available (if enabled)
3. Redirect to detail page

Validation Errors:

• Error messages appear next to fields
• Scroll up to see all errors
• Fix and retry

Testing

1. Manual: Execute API with dryRun: true
2. Natural: Trigger event (e.g., update entity)
3. Logs: Business Rules > Execution Logs
4. Review: Verify conditions and actions

Example: Block Work Order Release Without Materials

Basic Information:

• Rule ID: BLOCK_WO_RELEASE_WITHOUT_MATERIALS
• Rule Name: "Block Work Order Release Without Materials"
• Description: "Prevents releasing work orders to production when required materials are not available in inventory"
• Rule Type: GUARD
• Rule Category: "Material Planning"
• Entity Type: WorkOrder
• Event Type: onStatusChange

Metadata:

• Priority: 800
• Enabled: Yes
• Version: 1

Conditions:

AND:
  - newStatus = "RELEASED"
  - materialsAvailable = false

Failure Actions (execute when conditions true = block):

• BLOCK_TRANSITION
• SHOW_ERROR: "Cannot release work order. Required materials are not available in inventory. Please check material availability and try again."
• NOTIFY: Material planner

Success Actions: None (allow transition)

Next Steps

• Conditions Guide - Build conditional logic
• Actions Guide - Configure actions
• Execution Logs - Monitor and troubleshoot
