Action Builder

Actions execute based on condition results:

• Success Actions - When conditions are true
• Failure Actions - When conditions are false

Action Types

Action	Purpose	Configuration	Example
ALLOW_TRANSITION	Allow state transition (GUARD rules)	None	Allow work order release
BLOCK_TRANSITION	Block transition + error message	message	"Materials not available"
LOG	Write to execution logs	level (info/warn/error/debug), message	"Order {{orderId}} approved"
SHOW_ERROR	Display error to user	message	"Exceeds credit limit"
SHOW_WARNING	Display warning to user	message	"Below minimum quantity"
SHOW_INFO	Display info to user	message	"Submitted for approval"
NOTIFY	Send notifications	recipients, message	Recipients: manager@co.com
SET_FIELD	Update entity field	field, value	field: status, value: "APPROVED"
CALL_WEBHOOK	HTTP request to external URL	url, method, payload	POST https://api.example.com
EMIT_EVENT	Emit domain event	eventName, payload	Event: order.approved

💡 GUARD rules: Use BLOCK_TRANSITION as failure action to prevent operations.

Message Interpolation

Use {{field}} syntax for dynamic values:

• Basic: "Order {{orderId}} assigned to {{assignedTo}}"
• Nested: "Customer {{customer.name}} from {{customer.address.city}}"
• Special: "Approved by {{user.email}} on {{today}}"
• Multiple: "Order {{orderId}} total {{total}} exceeds {{threshold}}"

Success vs. Failure Actions

Success (conditions true):

• Log operations
• Send confirmations
• Set field values
• Trigger processes

Failure (conditions false):

• Block operations (GUARD)
• Display validation errors
• Log rejections
• Notify about failures

Example:

Conditions: orderTotal > 10000
Success: SET_FIELD status="PENDING_APPROVAL", NOTIFY approver
Failure: SHOW_INFO "No approval needed"

Action Sequencing

Actions execute top-to-bottom. Use arrow buttons to reorder.

Order matters:

• Blocking actions stop further execution
• Early field values available to later actions
• Place logs before external calls

Example: LOG → SET_FIELD → SHOW_INFO → NOTIFY → EMIT_EVENT

Building Actions

1. Click Add Action in Success/Failure section
2. Select action type
3. Fill configuration fields
4. Use arrow buttons to reorder
5. Click trash icon to delete
6. Click Show JSON to view raw structure

Validation: System checks required fields, field paths, URLs, JSON syntax, and interpolation.

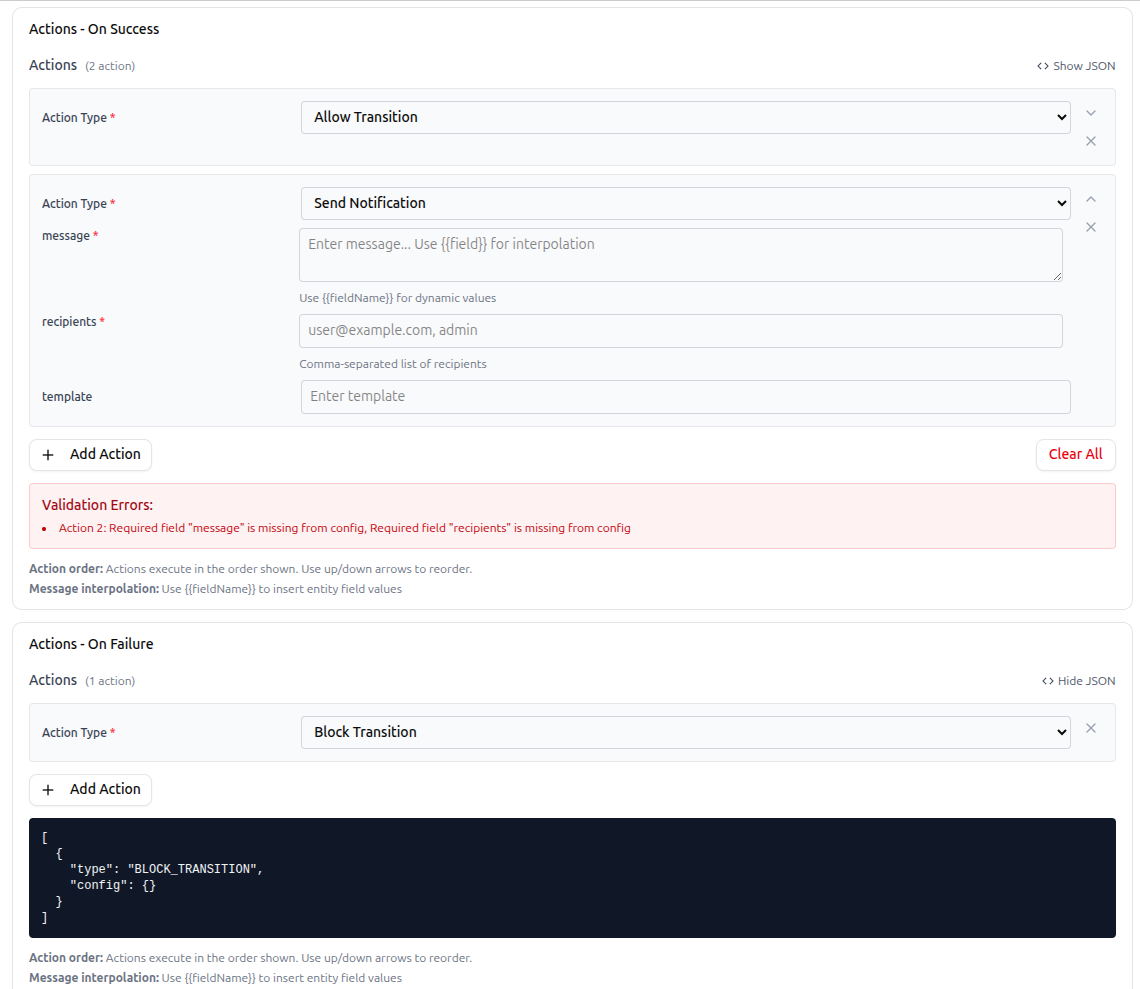

Action builder showing success and failure actions with configuration forms and reordering controls

Common Patterns

Approval Workflow:

Success: SET_FIELD status="PENDING_APPROVAL", NOTIFY approver, SHOW_INFO

Guard with Feedback:

Failure: BLOCK_TRANSITION, SHOW_ERROR, LOG error, NOTIFY admin

Audit Trail:

Success: LOG "{{operation}} by {{user.email}}", SET_FIELD lastModified

External Integration:

Success: LOG, CALL_WEBHOOK, EMIT_EVENT entity.synced

Best Practices

• Start simple (1-2 actions), add as needed
• Write clear, actionable messages
• Log important events for audit trail
• Place blocking actions early, external calls late
• Test interpolation and field paths
• Consider failure scenarios (webhooks, events)
• Avoid notification spam

Troubleshooting

Issue	Check
Action not executing	Correct section (success/failure), conditions evaluating properly, execution logs
Interpolation failing	Field path syntax, field exists, execution logs for undefined values
Webhook failures	URL accessible, authentication, endpoint logs, JSON syntax
Field not setting	Field path correct, field writable, value type matches

Next Steps

• Execution Logs - Monitor action execution
• API Reference - Execute rules programmatically
